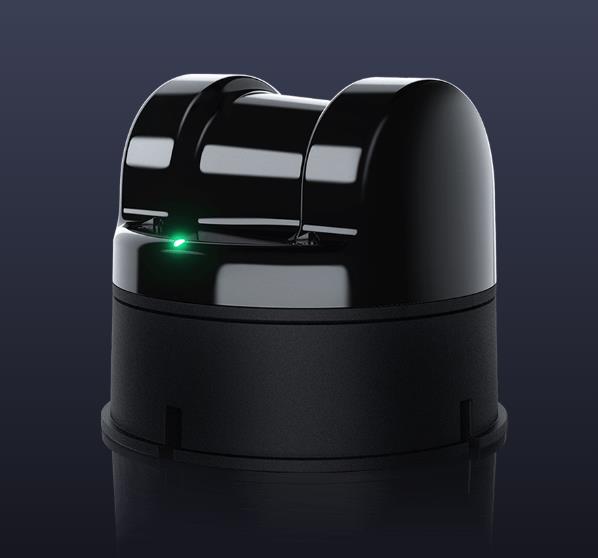

4D-LIDAR-L1

Bionic 4D laser rada

Detalles del producto

360°×90°
Ultra-wide-angle scanning

0.05m
Near blind spot

30m
@90% reflectivity

21600points/s
Effective frequency

230g
Weight

75×75×65mm
Compact size
Completely meets the needs of small, conventional mobile robots in applications.
The top-of-the-line automotive-grade LiDAR generates a point cloud density of approximately 1.5 million points/s. At speeds of up to 200 km/h (55 m/s), the corresponding point cloud density is only 27,000 points/s when traveling 1 meter (and this is in scenarios that involve personal safety).
In contrast, small conventional mobile robots typically move at speeds far below 1 m/s. When equipped with L1 LiDAR, the corresponding point cloud density when traveling 1 meter is comparable to that of an automotive-grade system. Therefore, the point cloud density of the L1 LiDAR system is more than adequate for the needs of small and medium-sized mobile robot applications.
